3B8

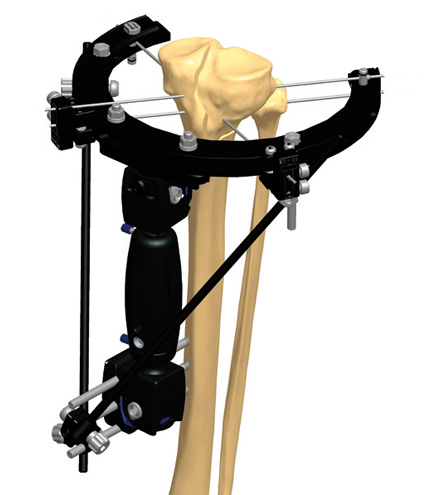

Articular fracture of the proximal tibia treated with the XCaliber Hybrid Fixator (91000 series).

Equipment required
Q.tyCatalogue N.Description
1

99-91080



XCALIBER HYBRID KIT STERILE

2

81043



SUPPLEMENTARY SCREW HOLDER BAR RADIOLUCENT 300 MM

4

90038



SUPPLEMENTARY SCREW HOLDER CLAMP

1

81004A



2/3 RING INNER DIAMETER 190MM

2

80031



3-HOLE WIRE CLAMP SLIDER UNIT

2

80025



TWO-HOLE K-WIRE SECURING PIN

2

80042



POST LENGTH 50 MM

3

80112



X-WIRE WITH LATERAL OLIVE DIAMETER 2 MM LENGTH 400 MM

3

99-912640



XCALIBER BONE SCREW STERILE L260/40MM THREAD D6.0-5.6MM
